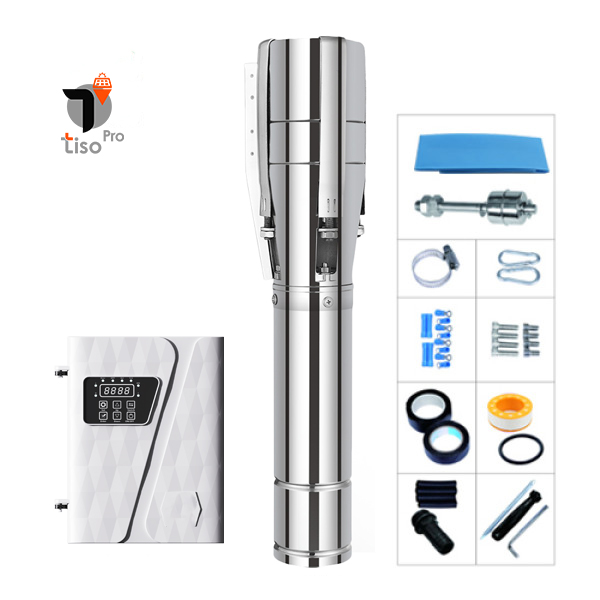

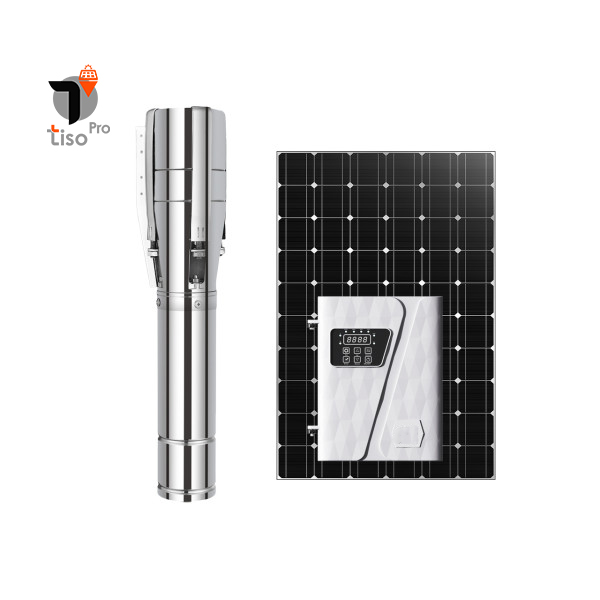

4/6"AC/DC brushless solar pump with S/S impeller(5KW-7.5KW), solar power water pump manufacturers, solar factory
| Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
|---|---|
| Brand | Tisosolar |
| Model | Tiso-4DSC-A/D |
| Type | Solar water pump with S/S impeller |
| Material | Stainless steel |
| Package type | Wooden case |
| Warranty | 2 years |
| Certificate | CE, GS, RoHS |
| Application | Household;irrigation,livestock |
| Update Time | Aug 25,2025 |
Description
4/6"AC/DC Brushless Solar Pump with Stainless steel Impeller Technical Data
4/6"AC/DC Brushless Solar Pump with Stainless steel Impeller
4/6 inch AC/DC brushless submersible solar powered water pump direct sales from solar water pumps manufacturers

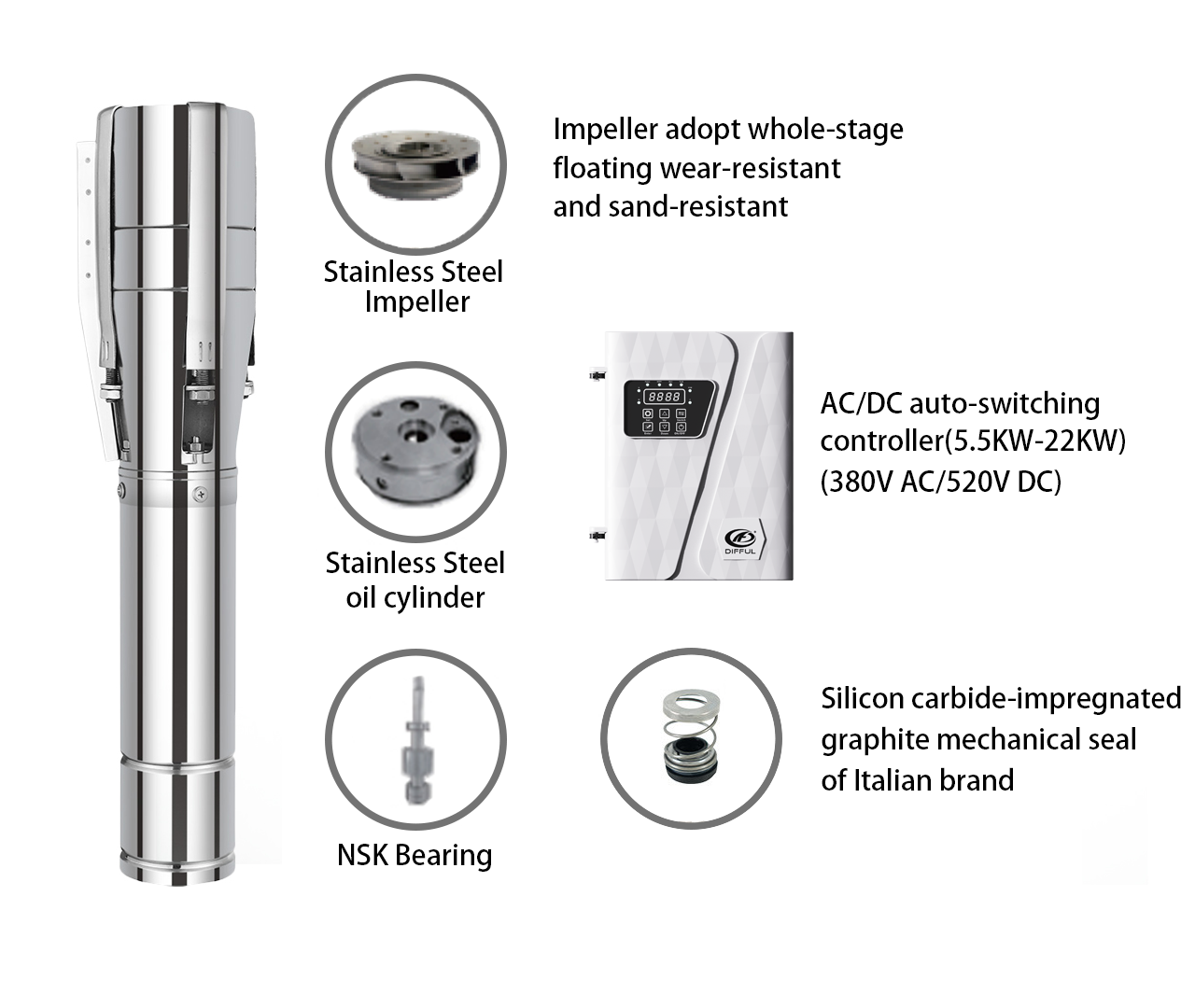

Stainless steel impeller: More durability, corrosion resistance, heat resistance, impact resistance and strength
Max Flow range: 30-95m3/h
Max Head range: 63-143m

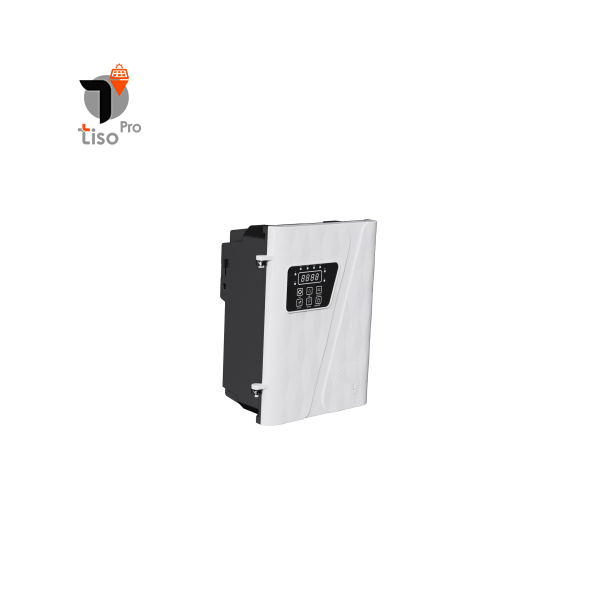

5.5-22KW AC/DC auto-switching controller: Avaliable for providing household water, livestock husbandry and irrigation

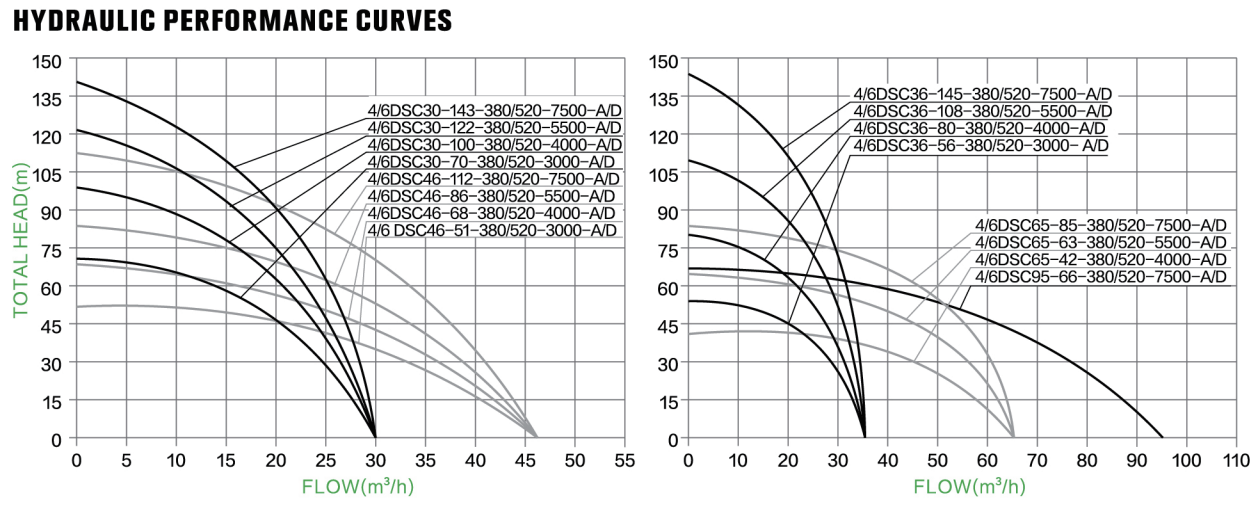

4/6"AC/DC Brushless Solar Pump with Stainless steel Impeller Hydraulic Performance Curves
How to choose a solar pump:
1. Confirm your technical requirements
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
2. Choose solar pumps according to your needs
Calculate the "actual lift needed" and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
Calculate the "actual lift needed" and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.

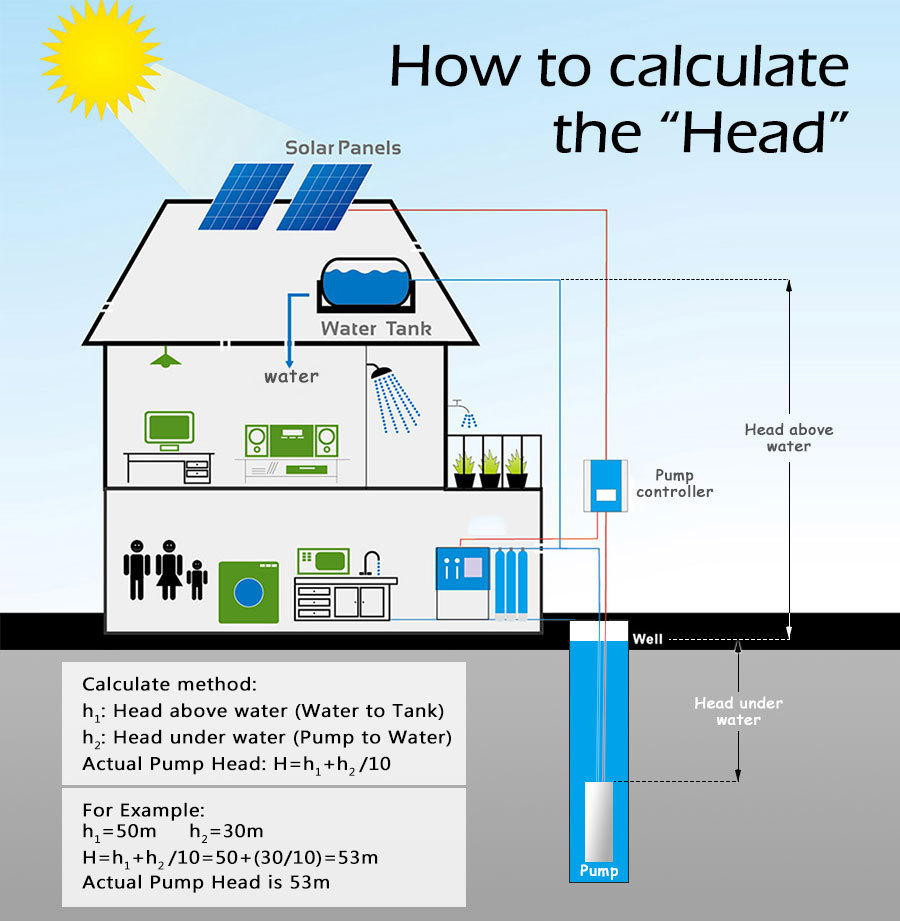

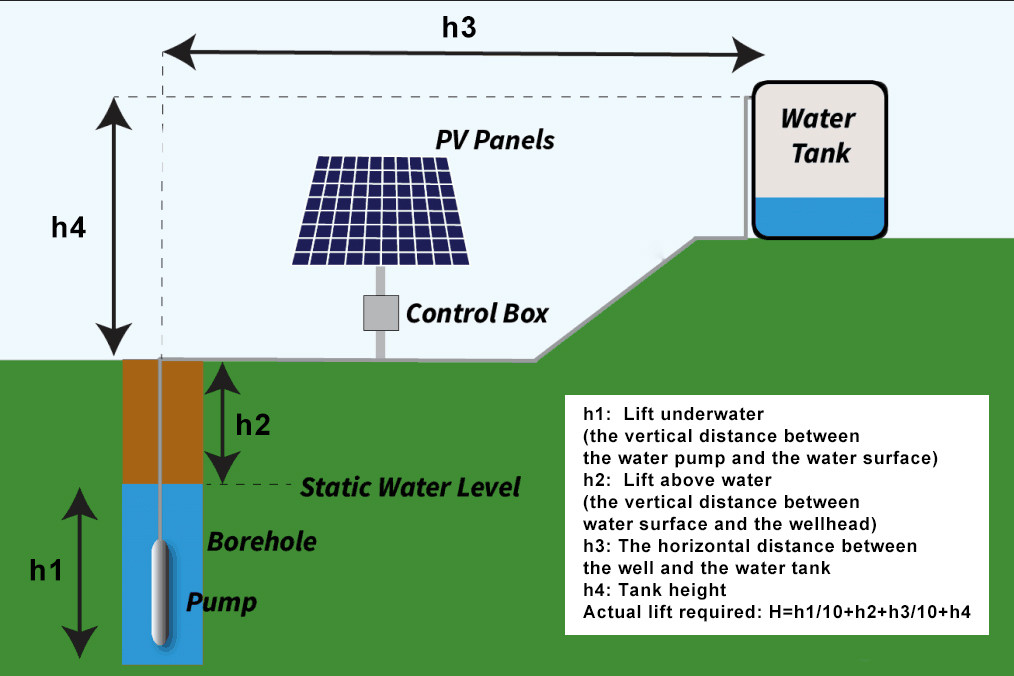

How to calculate the Head?q

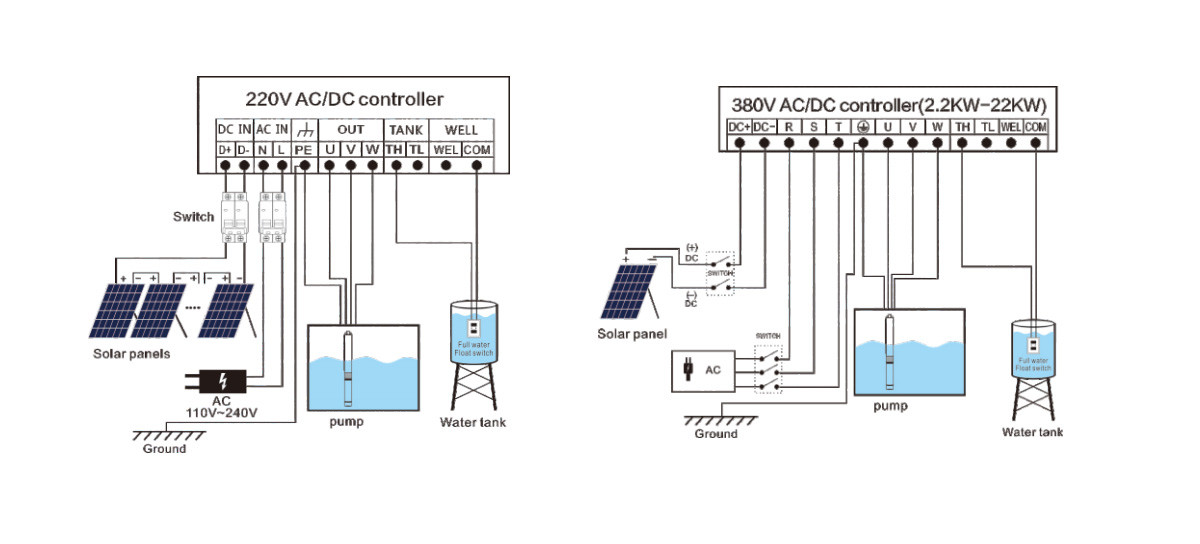

AC/DC Auto-Switching Controller Internal Wiring Diagram

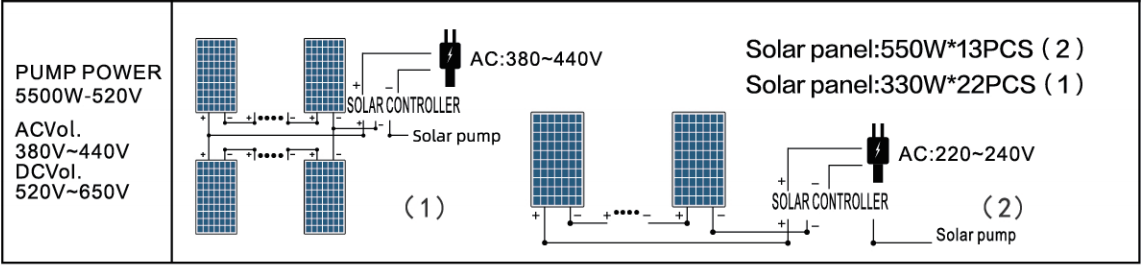

How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS3-100/5-2200S-A/D model matches the solar panel voltage between 80V～430V.

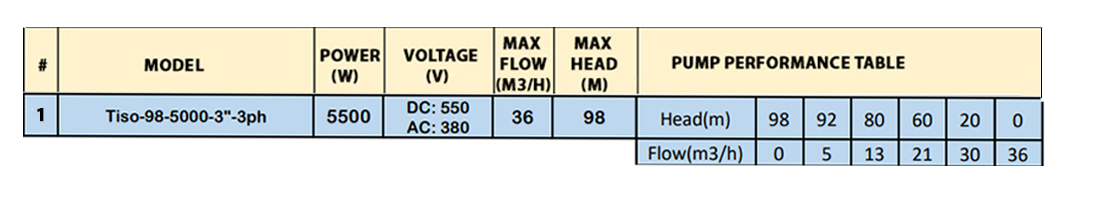

17 Tiso-98-5000-3"-3ph 5500 DC: 550
