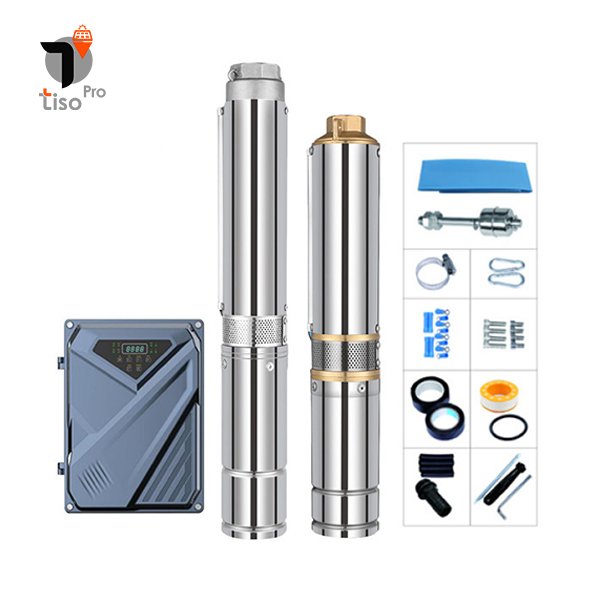

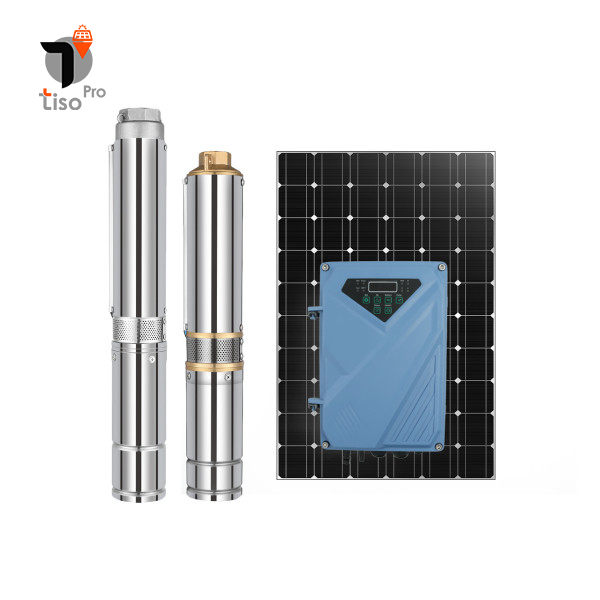

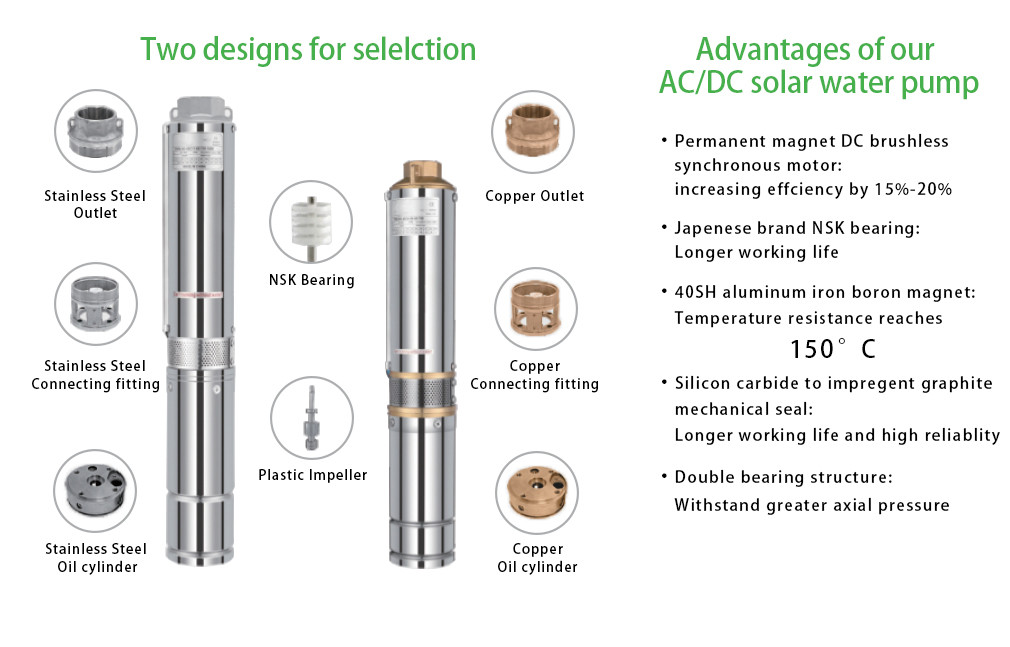

4"AC/DC brushless solar pump with plastic impeller(3KW-4KW), 2 designs for option, Tiso solar pump manufacturers, water pump supplier, solar pump factory
| Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
|---|---|
| Brand | Tisosolar |
| Model | Tiso-4DPC-A/D |
| Type | AC/DC solar pump with plastic impeller |
| Pump Body Material | Stainless steel |
| Outlet Material | Stainless steel/Brass |
| impeller Material | Plastic |
| Package type | wooden case |
| Warranty | 2 years |
| Certificate | CE, GS, RoHS |
| Update Time | Aug 18,2025 |
Description

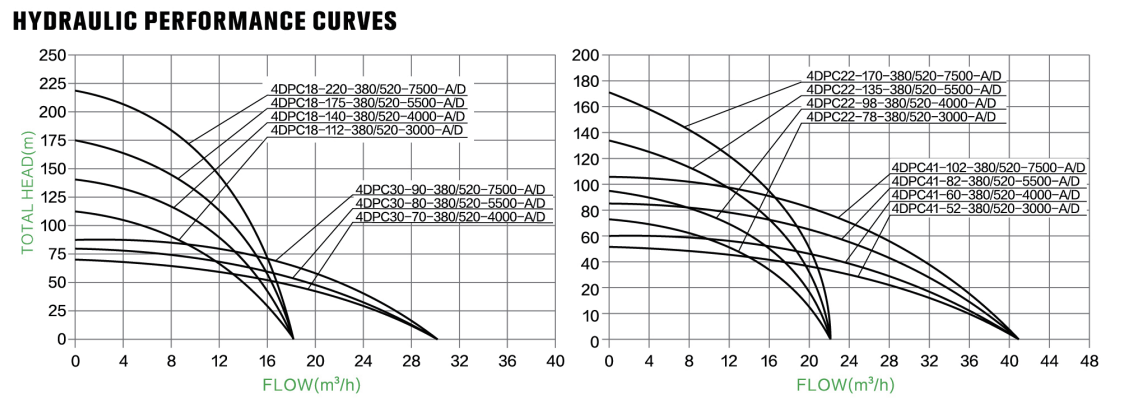

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
PLASTIC IMPELLER : High cost performance, popular in South-east Asia and Africa
MAX FLOW RANGE : 7-41m3/h
MAX HEAD RANGE : 52-300m

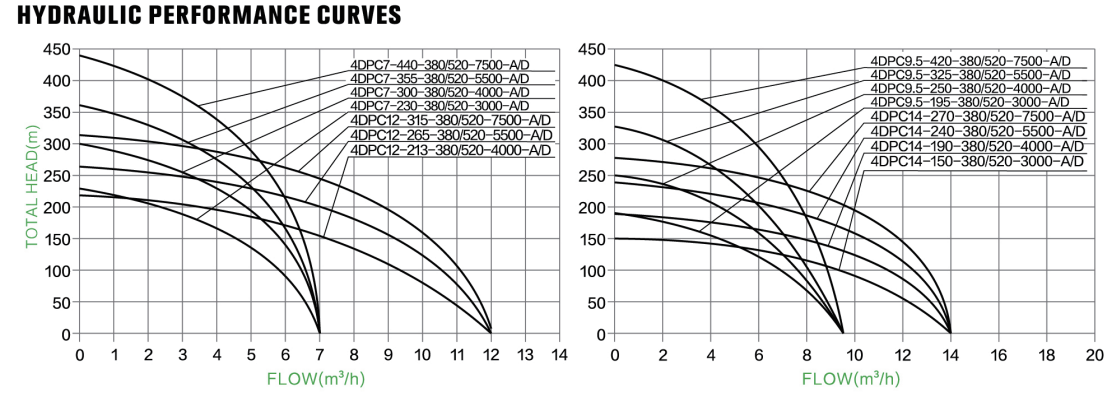

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER

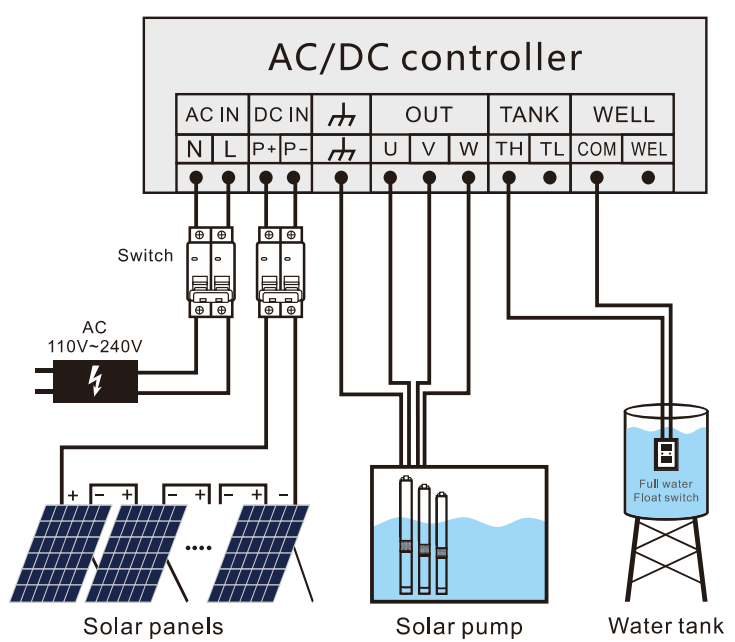

CONTROLLER INTERNAL WIRING DIAGRAM

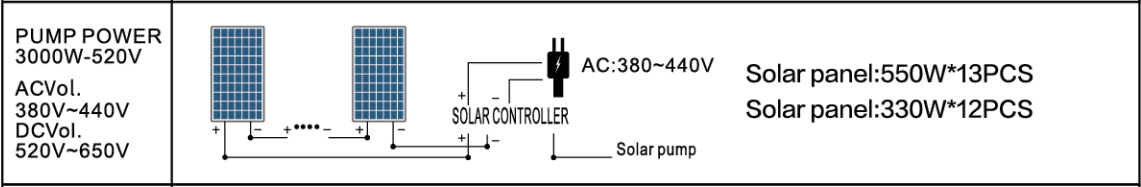

HOW TO CHOOSE SOLAR PANEL
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DPC6-56-220/300-750-A/D model matches the solar panel voltage between 120V～420V.

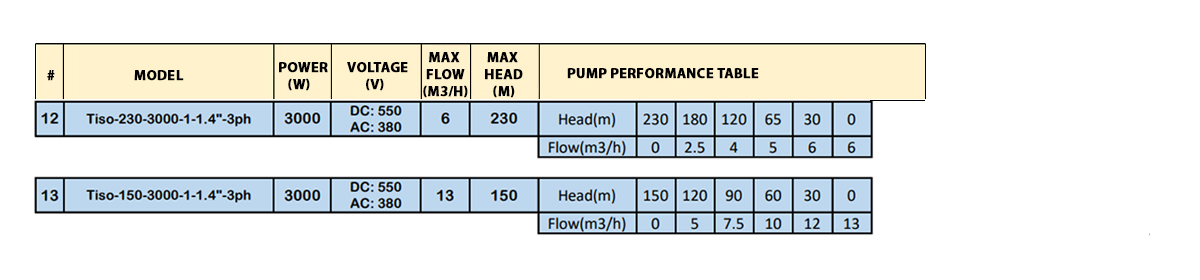

Tiso-230-3000-1-1.4"-3ph
Tiso-150-3000-1-1.4"-3ph
