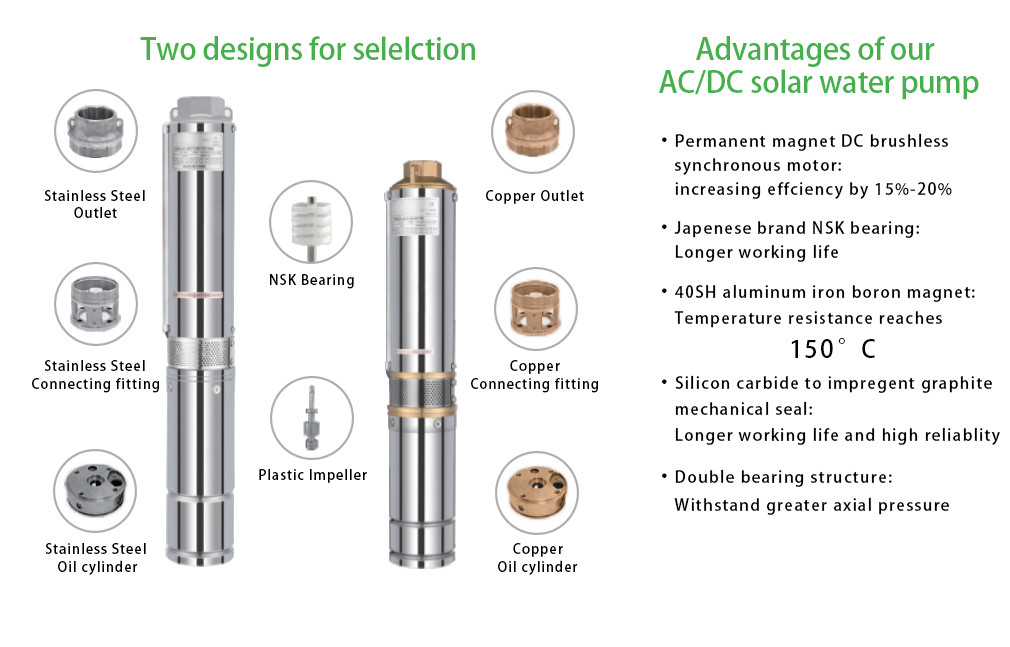

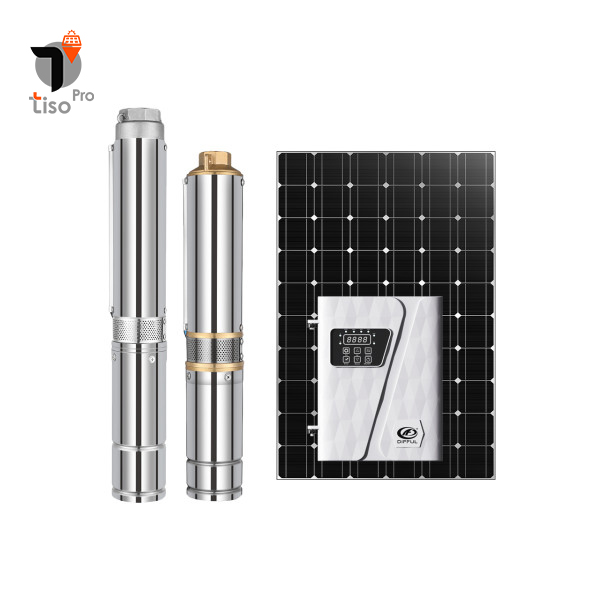

4"AC/DC brushless solar pump with plastic impeller(5.5KW-7.5KW), 2 designs for option, Tiso solar pump manufacturers, water pump supplier, solar pump factory
| Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
|---|---|
| Brand | Tisosolar |
| Model | Tiso-4DPC-A/D |
| Type | AC/DC solar pump with plastic impeller |
| Pump Body Material | Stainless steel |
| Outlet Material | Stainless steel/Brass |
| impeller Material | Plastic |
| Package type | wooden case |
| Warranty | 2 years |
| Certificate | CE, GS, RoHS |
| Update Time | Aug 21,2025 |
Description
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
PLASTIC IMPELLER : High cost performance, popular in South-east Asia and Africa
MAX FLOW RANGE : 7-41m3/h
MAX HEAD RANGE : 82-440m

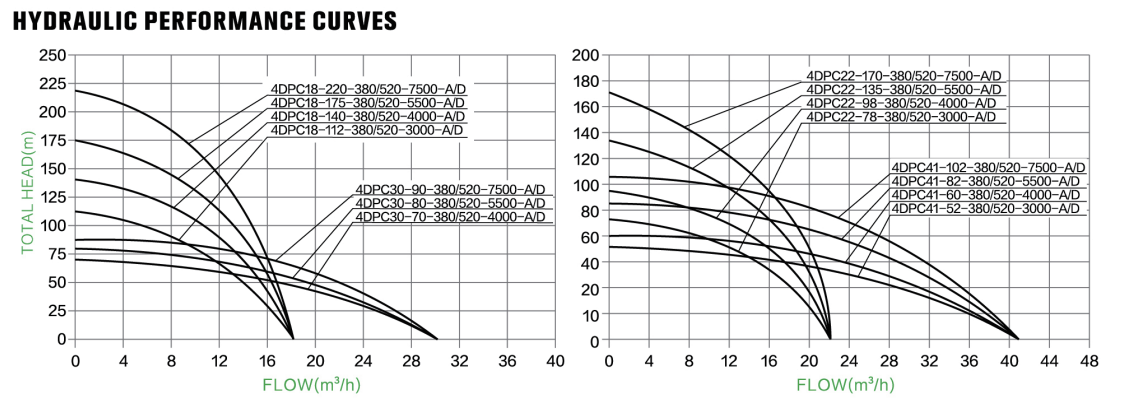

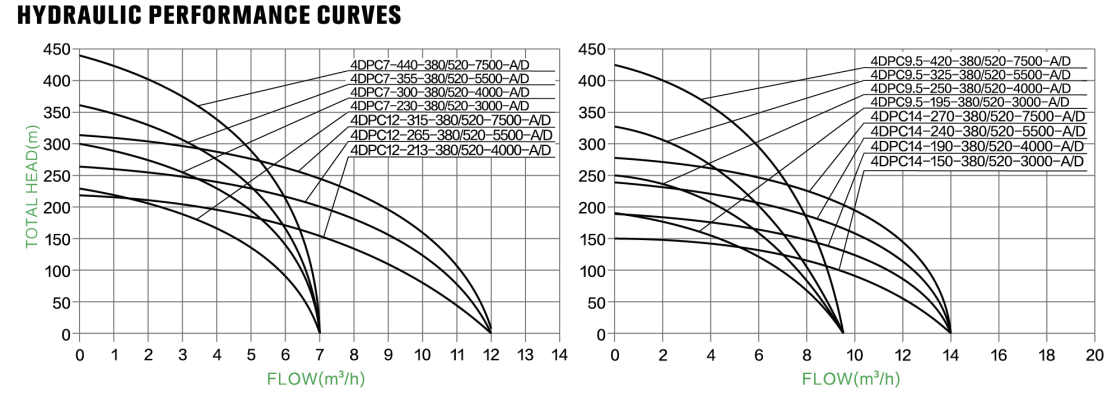

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER

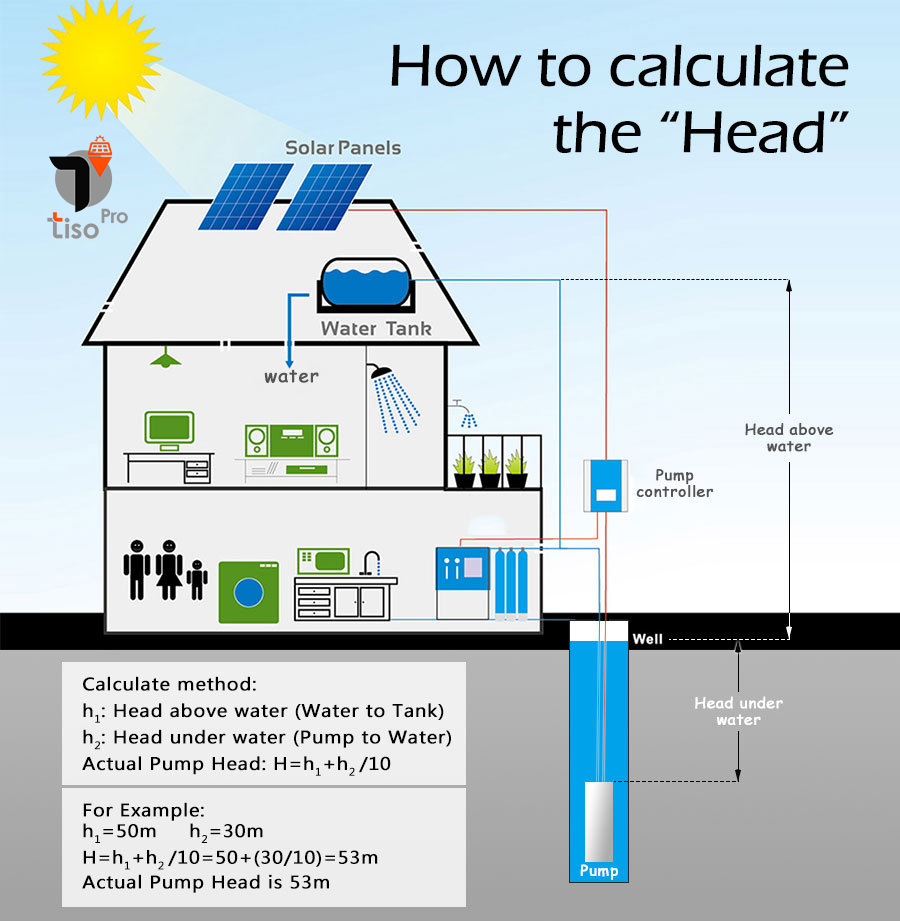

HOW TO CHOOSE A PUMP

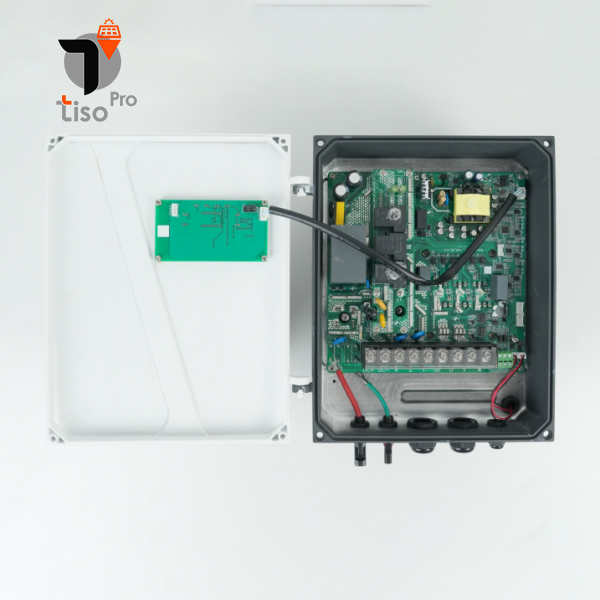

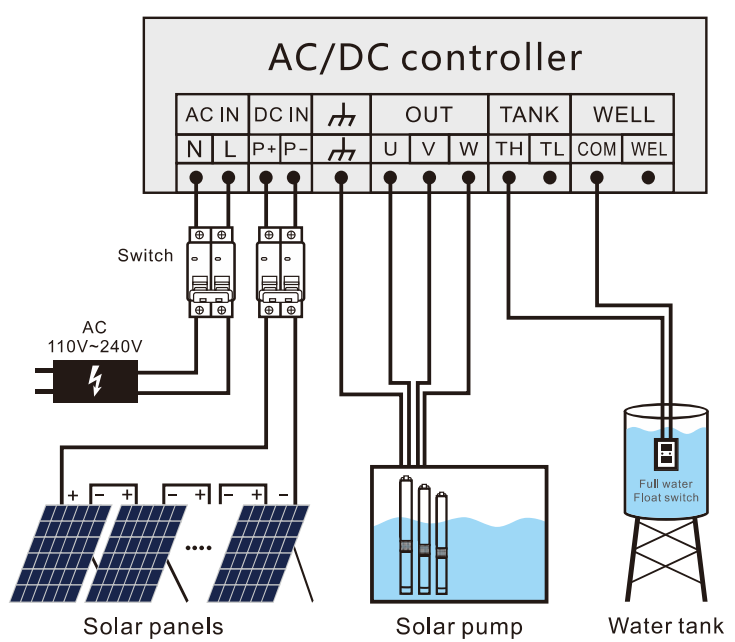

CONTROLLER INTERNAL WIRING DIAGRAM

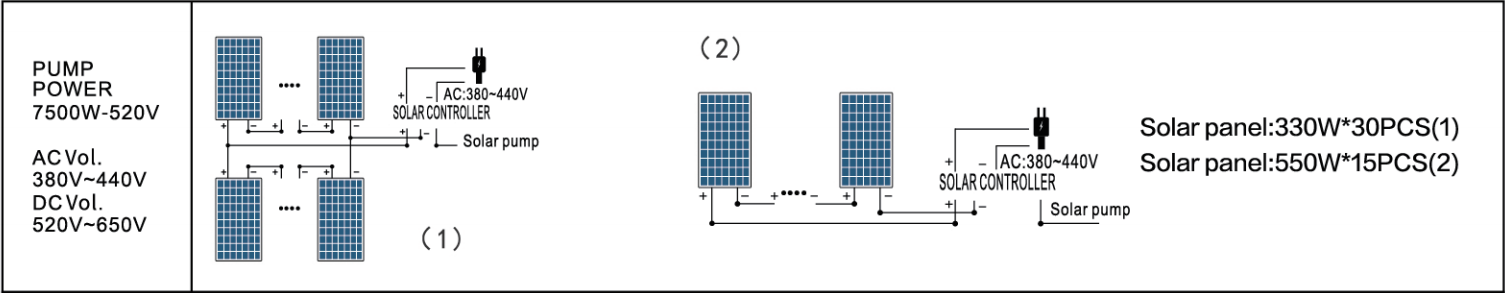

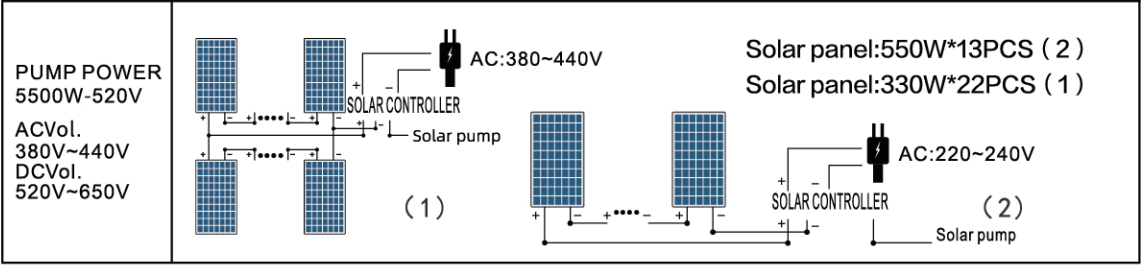

HOW TO CHOOSE SOLAR PANEL
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DPC6-56-220/300-750-A/D model matches the solar panel voltage between 120V～420V.

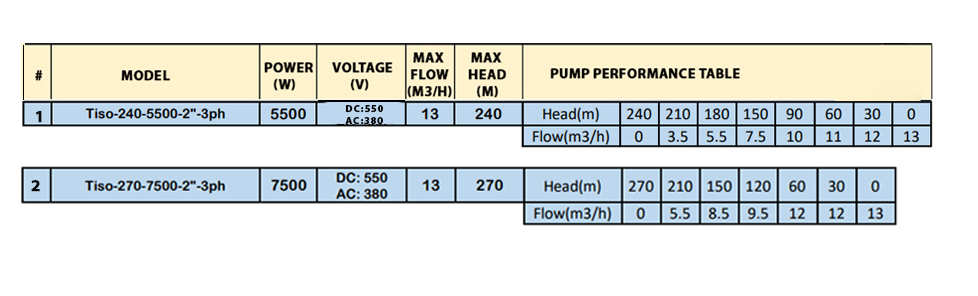

Tiso-240-5500-2"-3ph
Tiso-270-7500-2"-3ph
